Wireless MPG

Wireless MPG Specification

Connection
WIRELESS

Application
Wireless MPGs are used in various CNC machines where precise manual intervention is needed

Operate Method
Wireless

Classification
communication technology

Color
BLACK

Voltage
24VDC Volt (v)

Material
Stainless Steel, Mild Steel, and Acrylonitrile Butadiene Styrene (ABS) plastic

Power
5VDC Volt (v)

Product Type
control spindle speed

Usage
CNC M/C, VMC M/C

Function
Milling machines, CNC lathes, Engraving and milling machines, Vertical and horizontal machining centers

Wireless MPG Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash on Delivery (COD)

Delivery Time
1 Week

Packaging Details
CORRUGATED BOX

Main Domestic Market
All India

About Wireless MPG

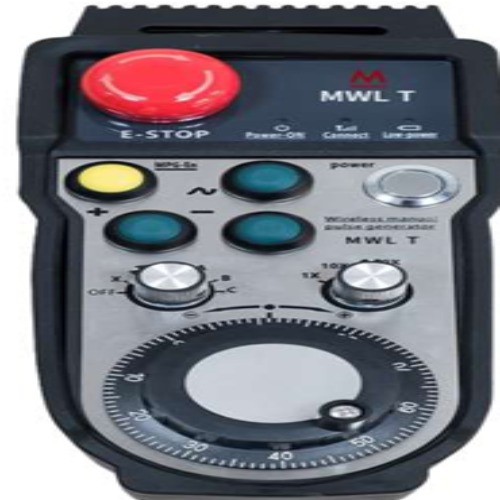

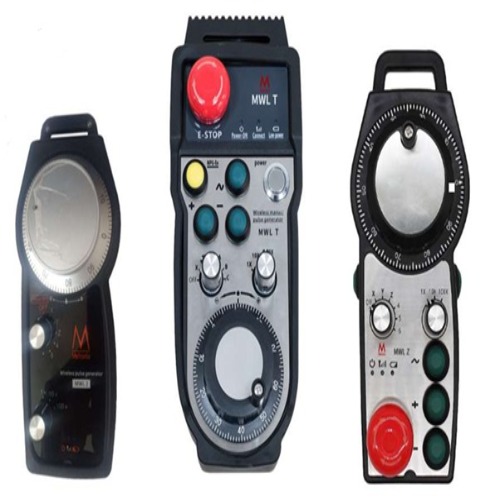

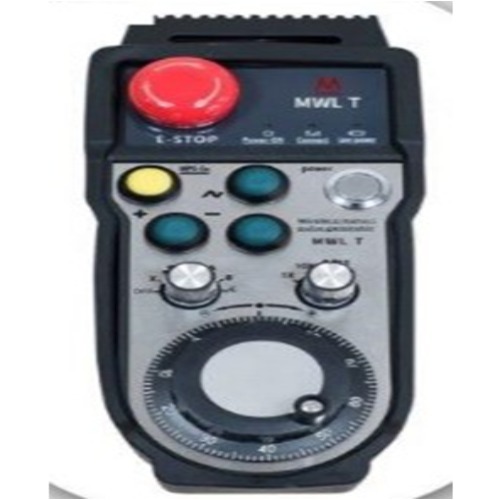

A Wireless MPG (Manual Pulse Generator) isa handheld, wireless pendant forCNC machinesthat allows for precise manual control of machine axes, enabling operators to position tools and materials accurately. It eliminates the need for a physical cable, enhancing safety by preventing accidental disconnection and improving operator flexibility. Key features often include multi-axis selection, feed rate adjustment, anemergency stopbutton, and a display screen showing machine status, all using RF, Bluetooth, or Wi-Fi for communication with the CNC controller.

Wireless Transmission: The unit uses wireless technology, such as radio frequency (RF), Bluetooth, or Wi-Fi, to send commands to the CNC controller.

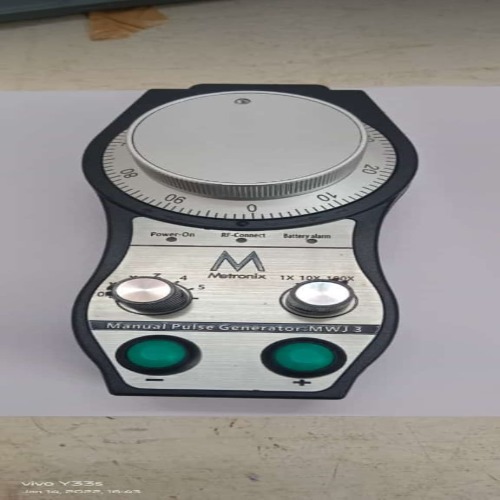

Manual Pulse Generation: An integrated high-precision encoder allows the operator to rotate a wheel or dial to send incremental movement commands for specific axes (X, Y, Z, A, B, C).
Communication: A receiver unit on the CNC machine processes the wireless signals and translates them into physical movements for the machines axes.

Key Features & Functions

Enhanced Safety: Removes cable drag and the risk of cable disconnection, which can cause accidents or damage.
Increased Flexibility: Allows operators to move freely around the machine without the constraints of a tethered cable, improving visibility and access.
Precision Control: Provides fine, accurate control for tasks like tool changes, setup, and fine-tuning movements during a machining process.
Multi-Axis Selection: Operators can select which axis (or axes) to control, such as X, Y, Z, and additional axes (A, B, C).
Integrated Controls: Includes buttons for emergency stops, feed hold, cycle start, and adjustments for feed rate and spindle speed.

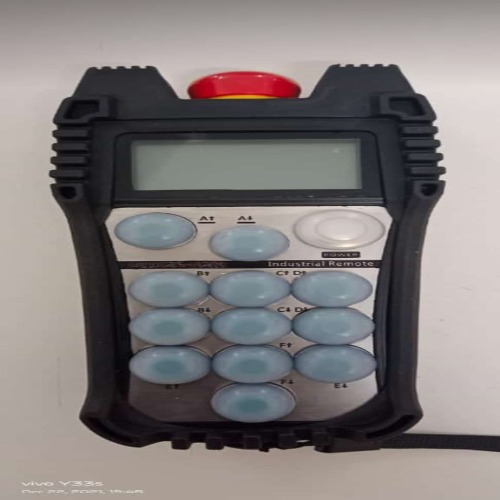

Display Screen: Many units feature an LCD screen showing axis positions, coordinate data, and other operational status information.
Ergonomics: Designed to be lightweight and comfortable for prolonged use, often with a magnetic base for convenient placement on the machine.

Common Applications
Wireless MPGs are used in various CNC machines where precise manual intervention is needed, including:

Milling machines
CNC lathes
Engraving and milling machines
Vertical and horizontal machining centers

Wireless Precision Control

Wireless MPGs provide unmatched flexibility and precision when manually controlling CNC, VMC, and other machining centers. The wireless feature ensures operators can move freely around equipment to optimize setup and operation, enhancing overall productivity and safety.

Durable Multi-Material Compatibility

Engineered to function with stainless steel, mild steel, and ABS plastic applications, this MPG adapts effortlessly to a broad spectrum of machine types and materials, ensuring reliable performance in demanding industrial environments.

Advanced Communication Technology

This MPG leverages state-of-the-art wireless communication methods for uninterrupted connectivity with your CNC equipment. Operating via 24VDC and powered by 5VDC, it assures stable transmission and long-lasting usability in contemporary manufacturing processes.

FAQs of Wireless MPG:

Q: How does the Wireless MPG improve manual control on CNC machines?

A: By providing wireless connectivity, the MPG allows operators to adjust and control the machine with precision from any location within the workspace, reducing setup time and enhancing safety.

Q: What types of machines and materials is the Wireless MPG compatible with?

A: The Wireless MPG is suitable for milling machines, CNC lathes, engraving and milling equipment, and both vertical and horizontal machining centers. It works seamlessly with stainless steel, mild steel, and ABS plastic components.

Q: When is it beneficial to use a Wireless MPG in a machining process?

A: Wireless MPGs are especially valuable during machine setup, troubleshooting, and when making fine manual adjustments, as they facilitate quick interventions without restricting operator movement.

Q: Where can Wireless MPGs be applied within industrial operations?

A: These controllers are frequently used in manufacturing workshops, CNC machining facilities, and fabrication sites across India where precise manual machining functions are essential.

Q: What is the process for connecting and operating the Wireless MPG?

A: Simply pair the MPG wirelessly with your CNC machines communication system, select the appropriate voltage settings, and begin controlling the equipment manually using the interface.

Q: What benefits does wireless operation offer compared to wired alternatives?

A: Wireless operation eliminates cable clutter, enables optimized movement around machinery, and supports safer, more efficient interventions during machine maintenance or setup.
