ANGLE DISPLAY UNIT/ LENGTH COUNTER

ANGLE DISPLAY UNIT/ LENGTH COUNTER Specification

Color
BLACK

Voltage
230 Volt (v)

Accuracy
High precision (exact value not specified)

Connection
Rear side terminal blocks (standard electrical connectors)

Application
Programmable & reset up and down counter for length & angle display unit

Function
Programmable & reset up and down counter for length & angle display unit

Size
Compact rectangular unit (actual dimensions not specified)

ANGLE DISPLAY UNIT/ LENGTH COUNTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD)

Supply Ability
1 Piece Per Week

Delivery Time
1 Days

Sample Available
No

Packaging Details
CORRUGATED BOX

Main Domestic Market
All India

About ANGLE DISPLAY UNIT/ LENGTH COUNTER

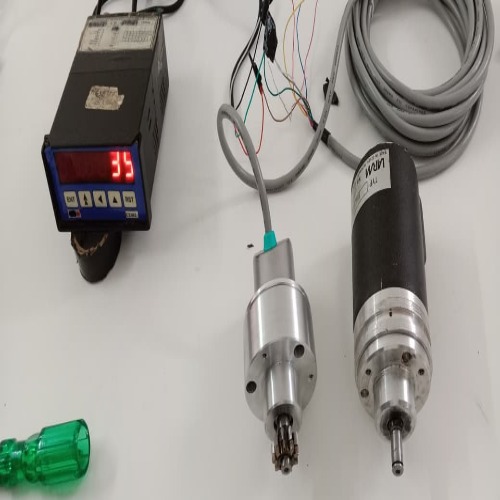

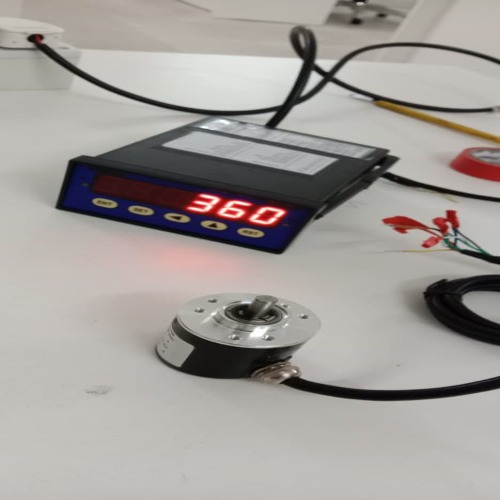

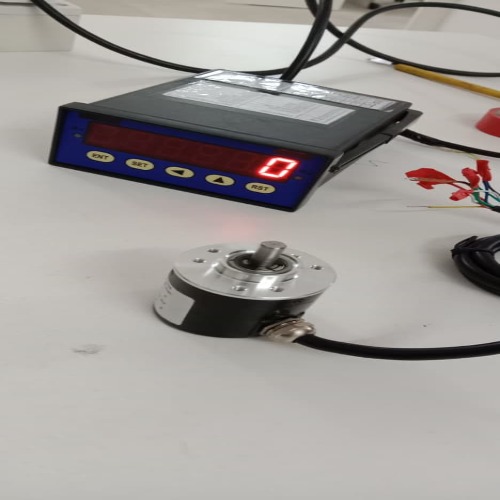

Display and Controls:The device features a red digital display and control buttons including "ENT" (Enter), "SET," arrow buttons (up/down), and "RST" (Reset), suggesting user interaction for setting parameters or viewing readings.
Input/Output Wiring Details (from label):
- Power:Earth, Neutral (N), and Line (L) for 230 V AC input.
- Encoder Power:12 V DC and GND (V) for powering the encoder.
- Encoder Channels:Connections for Green (ENCODER) to ACH and White (ENCODER) to BCH, indicating support for incremental encoders with A and B channels.

Versatile and Durable Industrial Solution

Built with a rigid industrial plastic body and finished in black, this unit ensures durability for long-term, demanding industrial environments. Its compact rectangular design enables easy integration into existing panels without consuming excessive space.

Precision Measurement and Superior Control

Featuring high-precision digital LED readouts, this unit allows operators to monitor length and angle values with exceptional clarity. Dual reset optionsmanual and remoteprovide users with added control and convenience, making it suitable for varying operational preferences.

Effortless Integration and Wide Compatibility

Designed with rear side terminal blocks, the unit easily connects to standard electrical installations. It accepts input from most standard sensors and encoders, enhancing its adaptability for a broad spectrum of applications in factories and workshops across India.

FAQs of ANGLE DISPLAY UNIT/ LENGTH COUNTER:

Q: How do I install the ANGLE DISPLAY UNIT/LENGTH COUNTER in my system?

A: The unit is intended for panel mounting and connects using standard rear side terminal blocks. Ensure that your panel cutout accommodates its compact rectangular size and verify compatible voltage and input signal options before installing.

Q: What types of sensors or encoders are supported as input?

A: This counter is compatible with all standard industrial sensors and encoder inputs, enabling straightforward integration into existing measurement and control systems.

Q: When should the manual or remote reset feature be used?

A: Use manual reset for on-site quick resets during normal operation. Opt for remote reset when automation is required or when the unit is located in hard-to-reach places, facilitating efficient workflow management.

Q: Where can this unit be utilized most effectively?

A: The product excels in industrial, manufacturing, and workshop settings where the monitoring and control of lengths or angles is critical. Its programmable features make it adaptable for various process applications.

Q: What process is followed to program the counting direction?

A: Users can configure the device for up or down counting via accessible programming controls, adapting the unit to suit specific operational requirements for length or angle measurement.

Q: How does this unit benefit industrial operations?

A: Operators gain increased monitoring precision and operational flexibility. The high-accuracy measurements and programmable/counting features enhance process control and efficiency, reducing errors and downtime.

Price 5800.0 INR/ Piece

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Week

Delivery Time
1 Days

Main Domestic Market
All India
